I'm currently modifying an existing microfluidic chip chann...
User
LayoutEditorFull
Tuesday 10th September 2024
Attachments:
(only for registered users)
Screenshot 2024-09-10 103922.jpg
SPATIAL-seq_V3 20um_filter_larger distance_Serpenting_100X100_final_um_2nd.gds

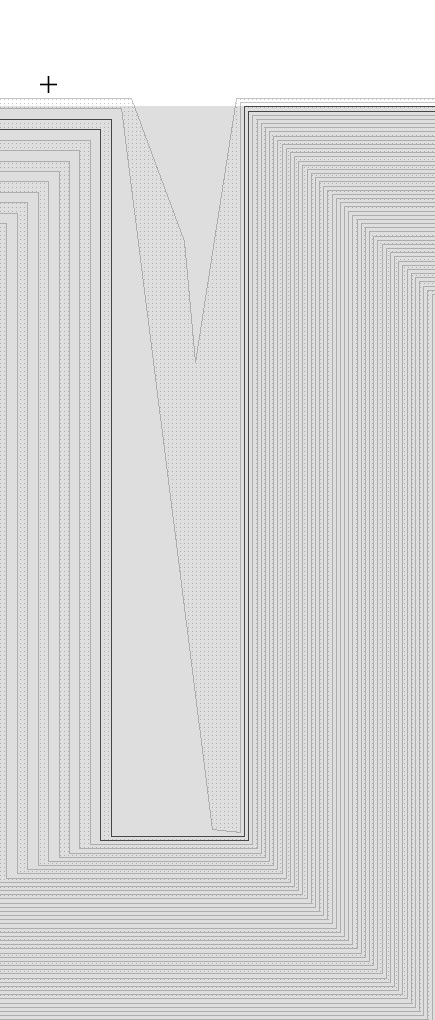

I'm currently modifying an existing microfluidic chip channel, and I'm trying to use the "move point" feature in the software. However, I can't seem to find a way to move a point by a fixed distance. Could you please guide me on how to do this?
LayoutEditorFull
Tuesday 10th September 2024
Attachments:
(only for registered users)
Screenshot 2024-09-10 103922.jpg
SPATIAL-seq_V3 20um_filter_larger distance_Serpenting_100X100_final_um_2nd.gdsI'm currently modifying an existing microfluidic chip channel, and I'm trying to use the "move point" feature in the software. However, I can't seem to find a way to move a point by a fixed distance. Could you please guide me on how to do this?
Jürgen
LayoutEditorFull
Tuesday 10th September 2024 I think the feature 'Align Value' is the feature you are looking for. It is located in the Align menu under utilities. To use it, please select the point (or points) you want to move with 'select point' and then coll the mentioned align feature. You will be prompted to enter two point. The selection is moved in a way that the entered value will match the entered distance.
