How to use the 4th comand in Cellarray ?
Nao
Tuesday 21st February 2023 How to make repeated arrays in line by using the 4th command in Cellarray? I have tried it but could not release it keeping hold and patterns are not repeated.
Tuesday 21st February 2023 How to make repeated arrays in line by using the 4th command in Cellarray? I have tried it but could not release it keeping hold and patterns are not repeated.
Jürgen
LayoutEditorFull
Tuesday 21st February 2023
Attachments:
(only for registered users)

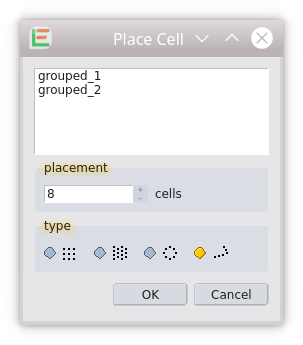

After choosing the cell to be referred, you can enter a path with multiply points. The references will be placed along this path. The entry of the path is competed by a ctrl+left mouse click.
LayoutEditorFull
Tuesday 21st February 2023
Attachments:
(only for registered users)
After choosing the cell to be referred, you can enter a path with multiply points. The references will be placed along this path. The entry of the path is competed by a ctrl+left mouse click.
