How to check component cells in a cell

User
LayoutEditorReduced
Monday 25th July 2022

HI! I would like to know if we have a tool to see all cells in a cell at glance. Thank you!


User
LayoutEditorReduced
Monday 25th July 2022

Adding, the tool I want shows all cell names used in a cell as a list.


Jürgen
LayoutEditorFull
Monday 25th July 2022
Attachments:
(only for registered users)

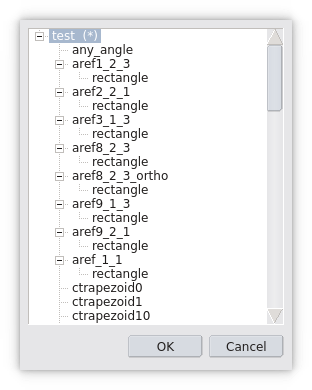

I guess you are looking for the Select Cell feature to display the hierarchy with all cells of a design. It is located in the Cell menu:



Jürgen
LayoutEditorFull
Monday 25th July 2022

Adding, the tool I want shows all cell names used in a cell as a list.

The Select Cell by Name feature also lists all cells used in the current displayed cell.
