Can't get a vectored port to netlist out correctly
Ted
Wednesday 1st December 2021 I have a component with a vectored port. The port name is 'cntr<3:0>'. If I connect it to 'foo<6:3>' the netlist is as expected: ``` Xsub1 vdd vdd vss hi lo c<0> c<1> Node_5 Node_4 Node_3 Node_2 foo<3> foo<4> foo<5> foo<6> hi hi ldo_c ldo_fb Node_17 dac_bit_msb ``` If I connect the port to 'hi,3*lo' or 'hi,lo,lo,lo' it netlists out as: ``` Xsub1 vdd vdd vss hi lo c<0> c<1> Node_5 Node_4 Node_3 Node_2 bus1::lo bus1::lo bus1::lo bus1::hi hi hi ldo_c ldo_fb Node_17 dac_bit_msb ``` The nets bus1::lo andd bus1::hi don't match any other nets and are treated as a floating net by the simulator. Is there any way to get that connection to netlist out as 'lo lo lo hi' ?
Wednesday 1st December 2021 I have a component with a vectored port. The port name is 'cntr<3:0>'. If I connect it to 'foo<6:3>' the netlist is as expected: ``` Xsub1 vdd vdd vss hi lo c<0> c<1> Node_5 Node_4 Node_3 Node_2 foo<3> foo<4> foo<5> foo<6> hi hi ldo_c ldo_fb Node_17 dac_bit_msb ``` If I connect the port to 'hi,3*lo' or 'hi,lo,lo,lo' it netlists out as: ``` Xsub1 vdd vdd vss hi lo c<0> c<1> Node_5 Node_4 Node_3 Node_2 bus1::lo bus1::lo bus1::lo bus1::hi hi hi ldo_c ldo_fb Node_17 dac_bit_msb ``` The nets bus1::lo andd bus1::hi don't match any other nets and are treated as a floating net by the simulator. Is there any way to get that connection to netlist out as 'lo lo lo hi' ?
Jürgen
LayoutEditorFull
Wednesday 1st December 2021
Attachments:
(only for registered users)

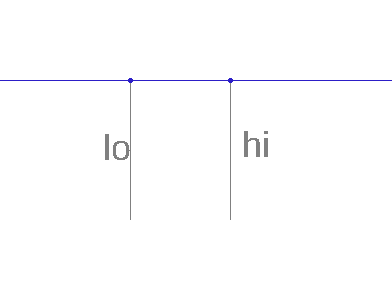

You need to connect the bus signals to *lo* and *hi* net like:
LayoutEditorFull
Wednesday 1st December 2021
Attachments:
(only for registered users)
You need to connect the bus signals to *lo* and *hi* net like:
Ted
Thursday 2nd December 2021 Cool. Thanks
Thursday 2nd December 2021 Cool. Thanks
