About the installation of layout editor and Pycell

Tony,

Monday 8th February 2021
Attachments:
(only for registered users)

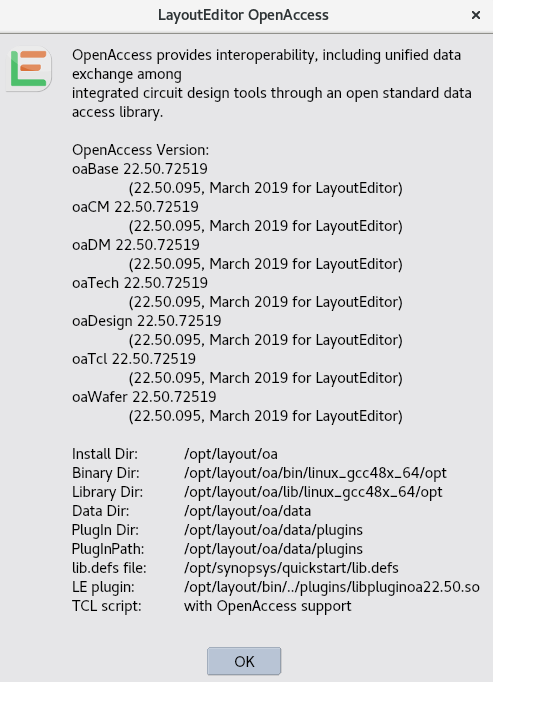

Dear Sir/Madam, I am using Centos 7.9. I installed both layout editor and Pycell. Version: layout-20200306-RHEL7.x86_64.rpm PyCellStudio_installer_linux_gcc483_64_L-2020.03-1_Py251 (note: I have tried the latest version; same issue). 1) Verification for Pycell source <install path>/quickstart/tcshrc cd $CNI_ROOT/quickstart pyros I can change the width for the sample layout in the GUI. This indicates that the PyCell works. 2) For layout: I can start the GUI using command "layout &". 3) Issue in layout editor: Utilities ==> OpenAccess ==> About open access All dir are pointed to /opt/layout/oa instead of /opt/sysnopsys/oa. (Snapshot attached) 4) Note: I also tried this start sequence source <install path>/quickstart/tcshrc cd $CNI_ROOT/quickstart layout & Any hints? Thanks a lot.
Tony,

Monday 8th February 2021
Attachments:
(only for registered users)

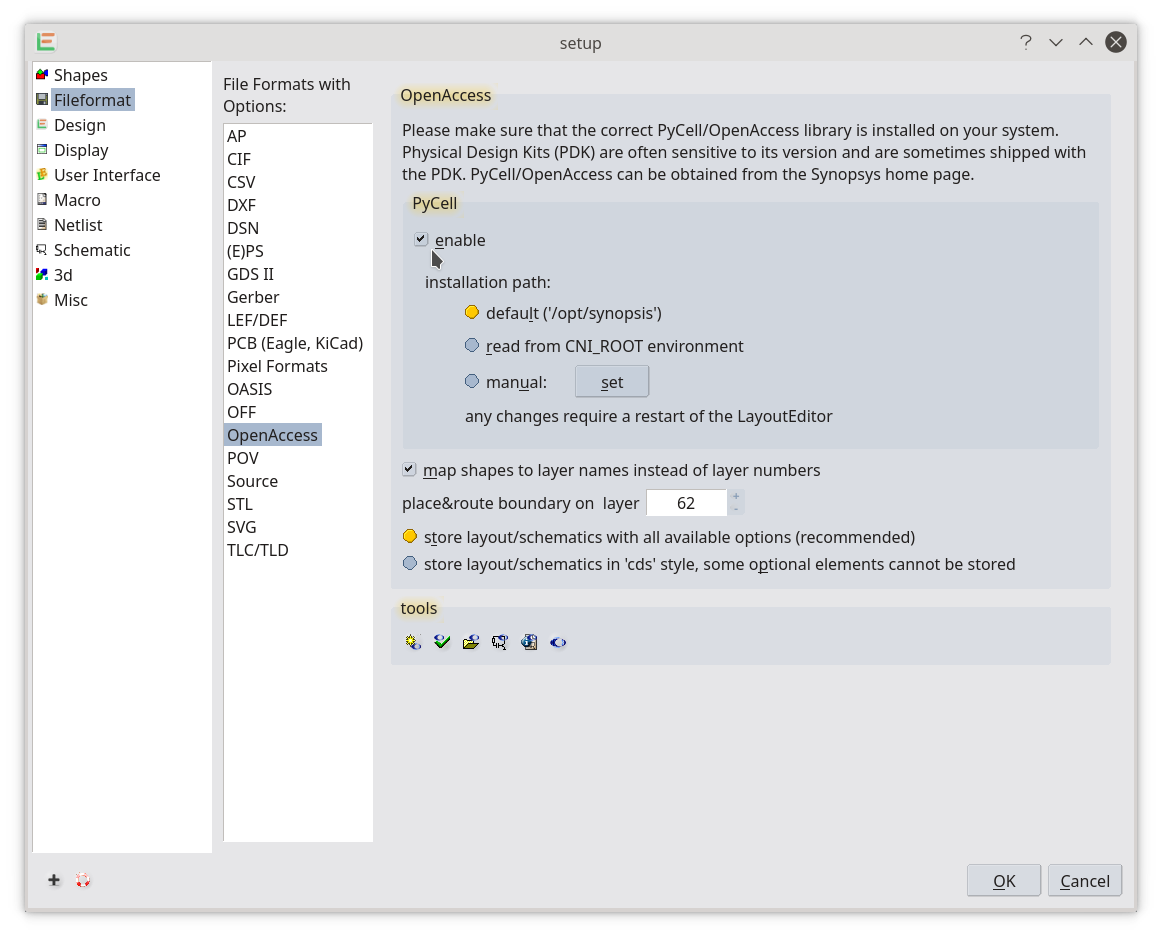

I solved this issue by changing the setting... (Snapshot attached)
J├╝rgen
LayoutEditorFull
Monday 8th February 2021
Attachments:
(only for registered users)

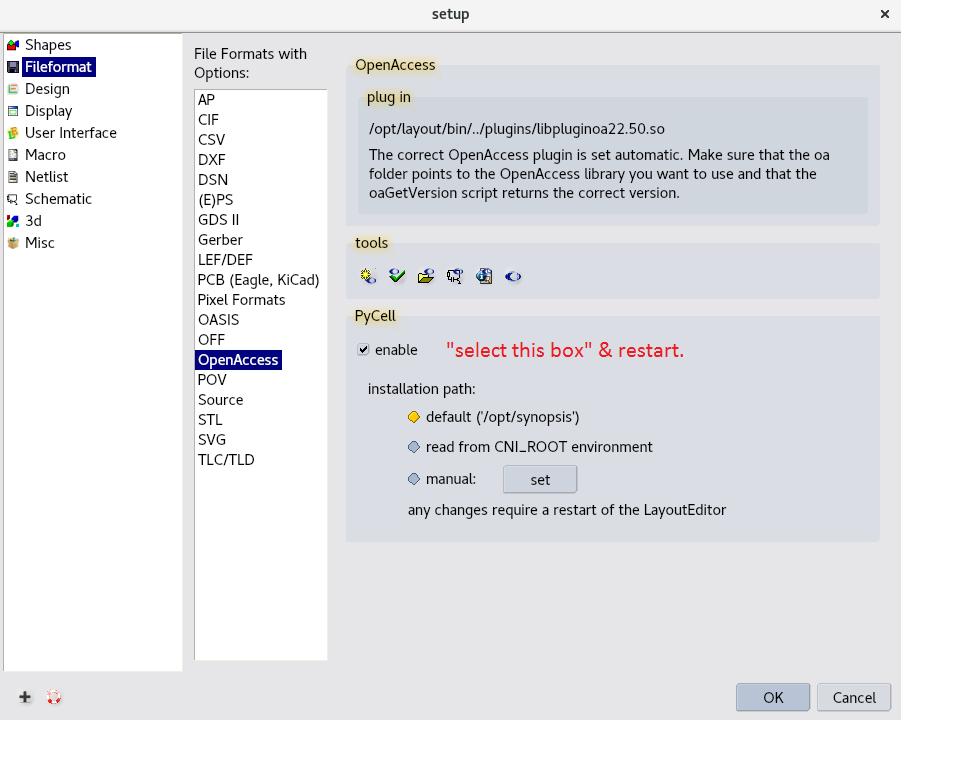

Tony, correct you figured it out. PyCell need to be activated in the setup. ![Screenshot_20210208_084432.png](/api/img.php?thread=20210208-e38e&file=Screenshot20210208084432.png)
