Display cell names and their boundaries only
User
LayoutEditorFull
Wednesday 10th April 2019
Attachments:
(only for registered users)
Is there a way to display only cell names and their boundaries in a design like the attached picture? Sometimes, I don't want to see the details but just want to know where the cells are located in a layout.
LayoutEditorFull
Wednesday 10th April 2019
Attachments:
(only for registered users)
Is there a way to display only cell names and their boundaries in a design like the attached picture? Sometimes, I don't want to see the details but just want to know where the cells are located in a layout.
Jürgen
LayoutEditorFull
Wednesday 10th April 2019
Attachments:
(only for registered users)

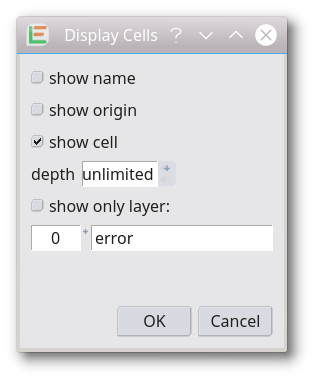

Yes that is possible. In the setup under display/drawing/cellrefs you will find all setting to control how references should be displayed. The same option you will find with a right click on the *Process Time* section in the footer.
LayoutEditorFull
Wednesday 10th April 2019
Attachments:
(only for registered users)
Yes that is possible. In the setup under display/drawing/cellrefs you will find all setting to control how references should be displayed. The same option you will find with a right click on the *Process Time* section in the footer.
User
LayoutEditorFull

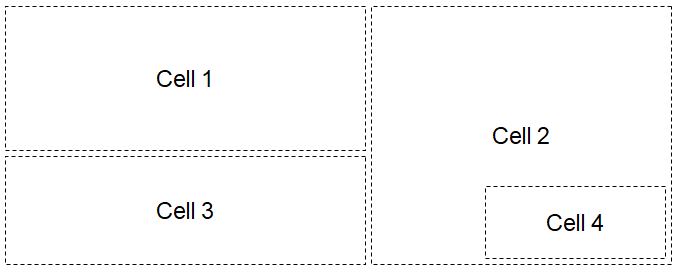

Wednesday 10th April 2019 Thanks! By selecting only "show name", I can see the boundaries and cell names. However, I can only see the top cells, not the nested cells inside a cell. The "depth" option doesn't seem to change anything. For example, cell-1, cell-2, and cell-3 are the top cells in my layout. My cell-4 is inside cell-2. Cell-4 doesn't appear no matter what value is set for "depth". Any suggestion?
LayoutEditorFull
Wednesday 10th April 2019 Thanks! By selecting only "show name", I can see the boundaries and cell names. However, I can only see the top cells, not the nested cells inside a cell. The "depth" option doesn't seem to change anything. For example, cell-1, cell-2, and cell-3 are the top cells in my layout. My cell-4 is inside cell-2. Cell-4 doesn't appear no matter what value is set for "depth". Any suggestion?
Jürgen
LayoutEditorFull
Wednesday 10th April 2019 I am sorry. Nested cells can only be view, if the cell shapes are displayed as well.
LayoutEditorFull
Wednesday 10th April 2019 I am sorry. Nested cells can only be view, if the cell shapes are displayed as well.
