Array of components in the SchematicEditor
User
LayoutEditorFull
Friday 7th December 2018 Could you please inform me if SchematiEiditor supports using an array of the components. I found that this is possible for ports with the command signal, <1:n:m> n: the endpoint m: step but can I do the same for the components.
LayoutEditorFull
Friday 7th December 2018 Could you please inform me if SchematiEiditor supports using an array of the components. I found that this is possible for ports with the command signal, <1:n:m> n: the endpoint m: step but can I do the same for the components.
Jürgen
LayoutEditorFull
Friday 7th December 2018
Attachments:
(only for registered users)

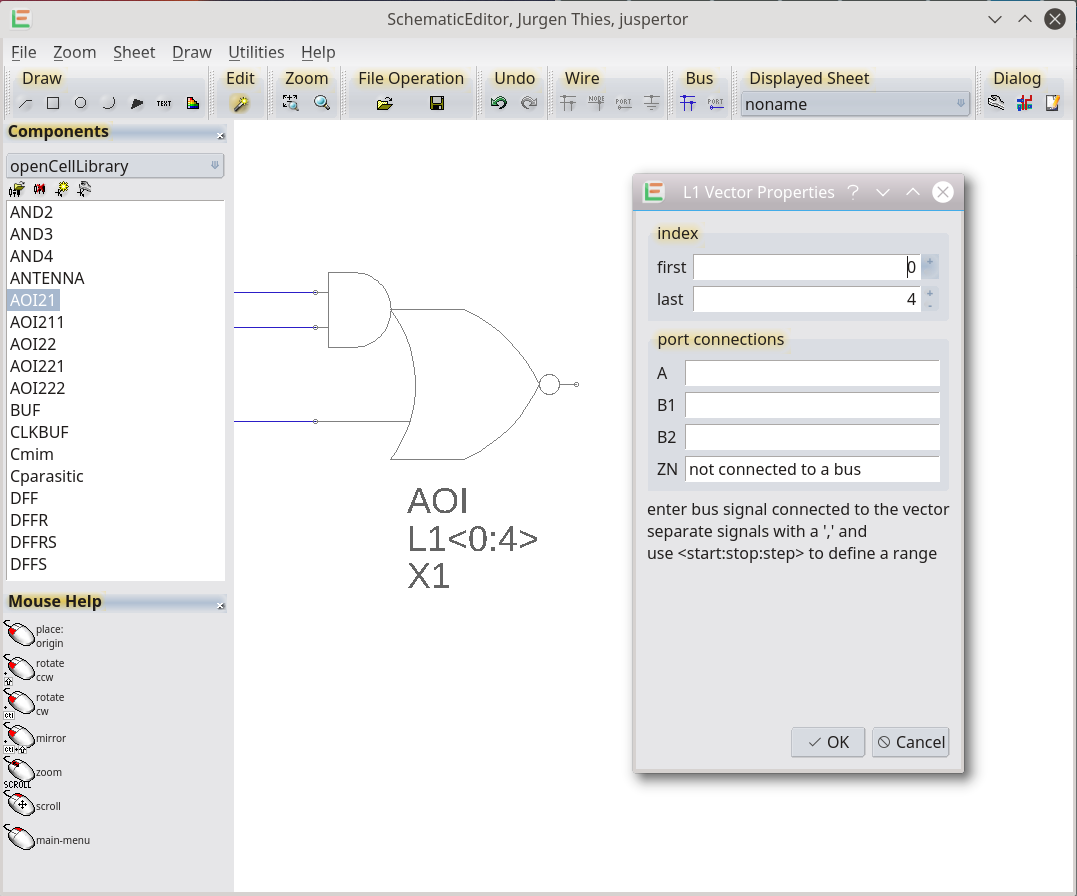

yes, that is possible. To do that, just place an identical component type on an existing component in the SchematicEditor. The existing component will be converted to an array/vector and the vector data can be edited.
LayoutEditorFull
Friday 7th December 2018
Attachments:
(only for registered users)
yes, that is possible. To do that, just place an identical component type on an existing component in the SchematicEditor. The existing component will be converted to an array/vector and the vector data can be edited.
